Sale!

Tissue Scribe (10mL Nozzle)

$2,998 $2,498

The 10mL Version are for users that wish to build larger than normal constructs or an extensive array of samples.

As Bioprinters are becoming a necessity in many research laboratories and even in classrooms, 3DCultures, offers the most economical bioprinter for the avid user. We understand that many of us do not need the advanced precision (nanometers) or tons of senors on a printer. A simple printer is sometimes all that is needed!

*Color may vary from images

SKU: BP310 Category: Tags: , , , , , ,

Additional information

Weight 16 lbs
Dimensions 18 × 14 × 12 in

Description

This printer has a single extruder (bio-head). It uses a standard BD 10mL syringe with interchangeable luer-lock tips. This printer can print a variety of materials including, but is not limited to; gelatin, alginate, chitosan, collagen, etc. The limitation of printing is the material viscosity. Thick materials combined with extremely small tips may prove to be more difficult to print, compared to thinner materials and larger tips. You can print from a Windows or Mac PC using a USB connection or print from 3D model files stored on a microSD card without the need for a computer connection. This printer is easy to use and setup. ADVANTAGES:
  1. Micron scale resolution.
  2. A nozzle that is available in any biology lab. Yes – this means no extra operating cost to buy new tips every time you need to print.
  3. A heated nozzle and print bed to maintain a cell friendly environment or to manipulate material viscosity.
  4. A small footprint for portability and to be placed within the smallest bio-hood for 100% sterile printing.
  5. Print a variety of cells and biomaterials. If you’re in the biofabrication field, this is a must have!

Specifications

Type: Single Head 3D Bioprinter

Build Platform: Aluminum Heat Bed

No. of Bio-head: 1

Nozzle: 10mL BD Syringe with luer-lock tip (tip size may vary)

Max Print Speed: 20mm/sec (Higher speeds may results in loss of detail)

Print Precision: 0.1-0.2mm (viscosity of material and Nozzle tip size dependent)

Optimal Layer Height: 0.043, 0.087, 0.131, 0.175, 0.218, 0.262, 0.306

Build Size: 100*120*80mm (3.9“ x 4.7” x 3.1“)

Max Hotend Temp: 70°C

Max Bed Temp: 60°C

Precision: X / Y axis 0.1mm, Z axis 0.04375mm

Materials: Hydrogels, anything that can be extruded from a syringe

Connectivity: MicroSD card, Mirco USB connector

Baud Rate USB: Any is okay. 115200 Works without issue. Higher rate should work also.

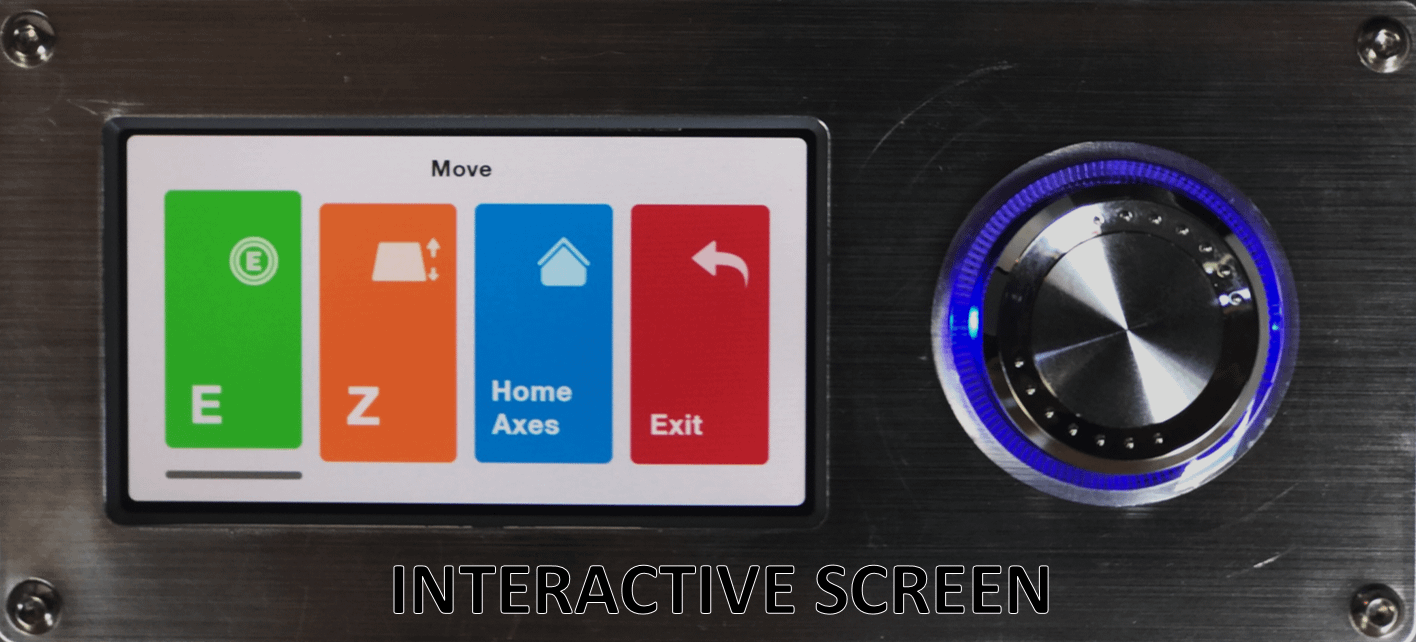

Display: IPS color LCD screen (non touch)

AC Adapter Input Power: 100 ~ 240 VAC, 50/60 Hz

Input Power: 12VDC, 7A

Maximum Power Consumption: 84W

Input File: GC, GCODE (STL & OBJ files must be converted to G-code)

Compatibility: Windows, MacOS, Linux

Dimensions: (H x W x D) 14” x 11.3 x 7.5“ (356 x 287 x 191 mm)

Max feed rates (mm/s): X150.00, Y150.00, Z1.50, E50.00

Max Acceleration (mm/s^2): X800 Y800 Z20 E10000
