Bioprinter (Polymers)
Pellet Extrusion
Bioprinter
Most polymers comes in a powder or pellet form. These material are of high melting point and has very good biological benefits. This printer allows user to print/extrude pellet/powder based material to build complex 3D constructs.
Prints/extrudes an extensive list of polymers in pellet/powder form.
High precision that allows for accurate material deposition.
Full Temperature control of the extrusion head and the build platform.
No Pneumatics. No compressors. 100% electro-mechanical.

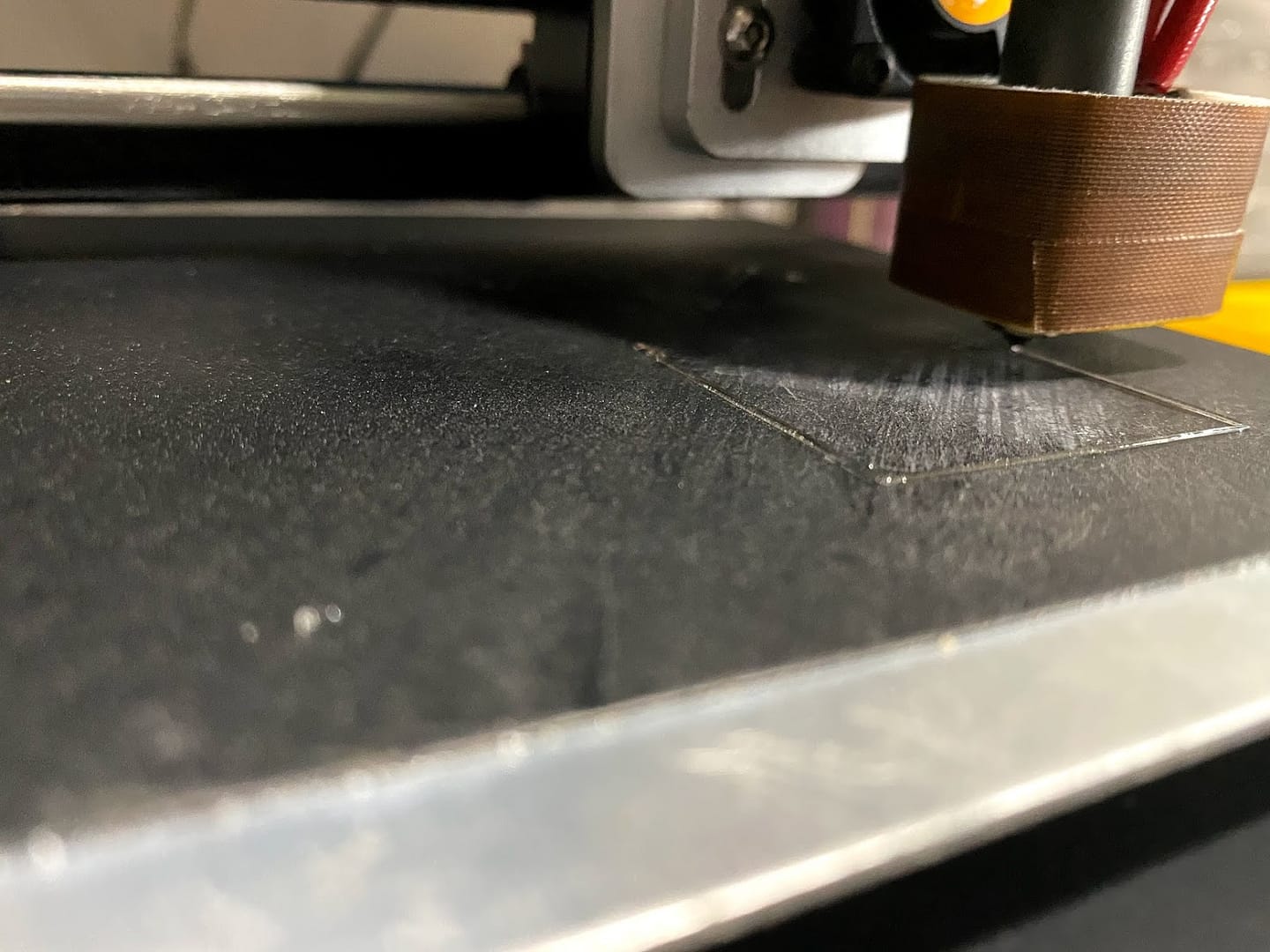

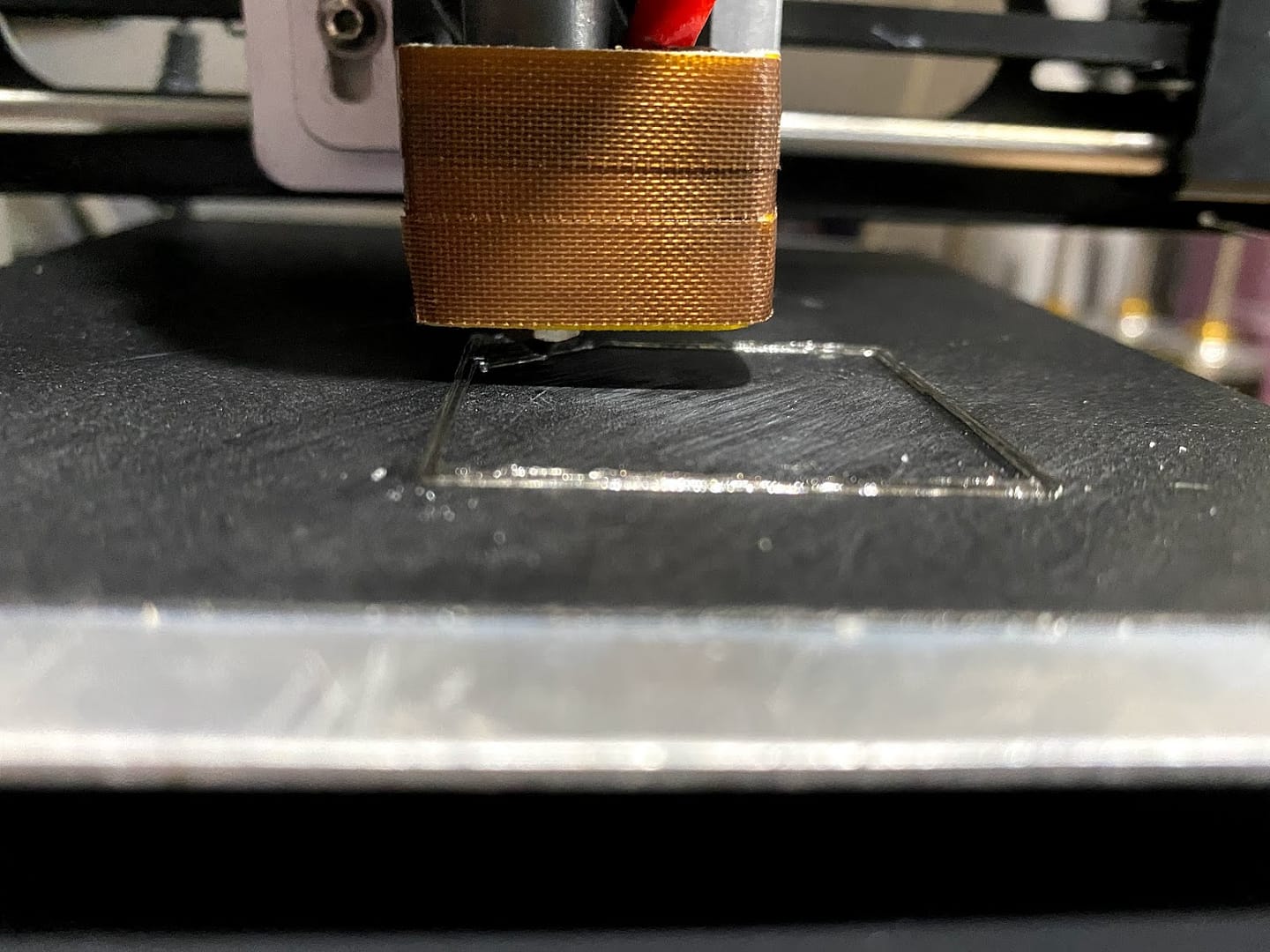

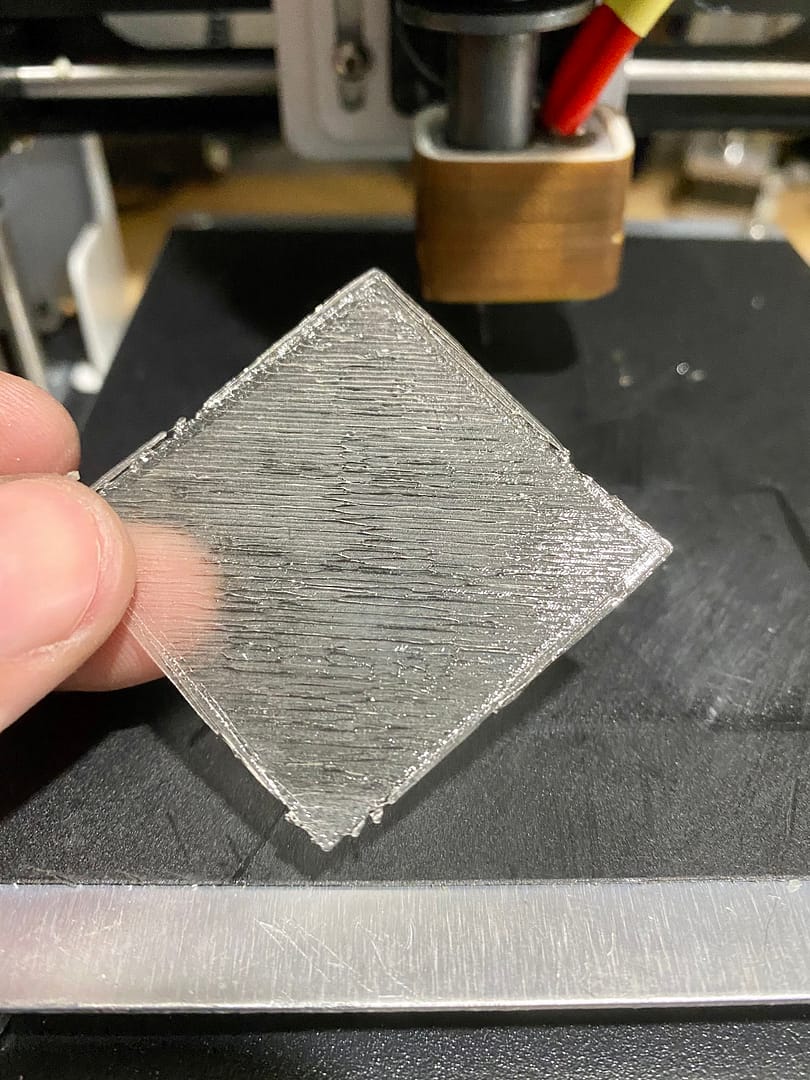

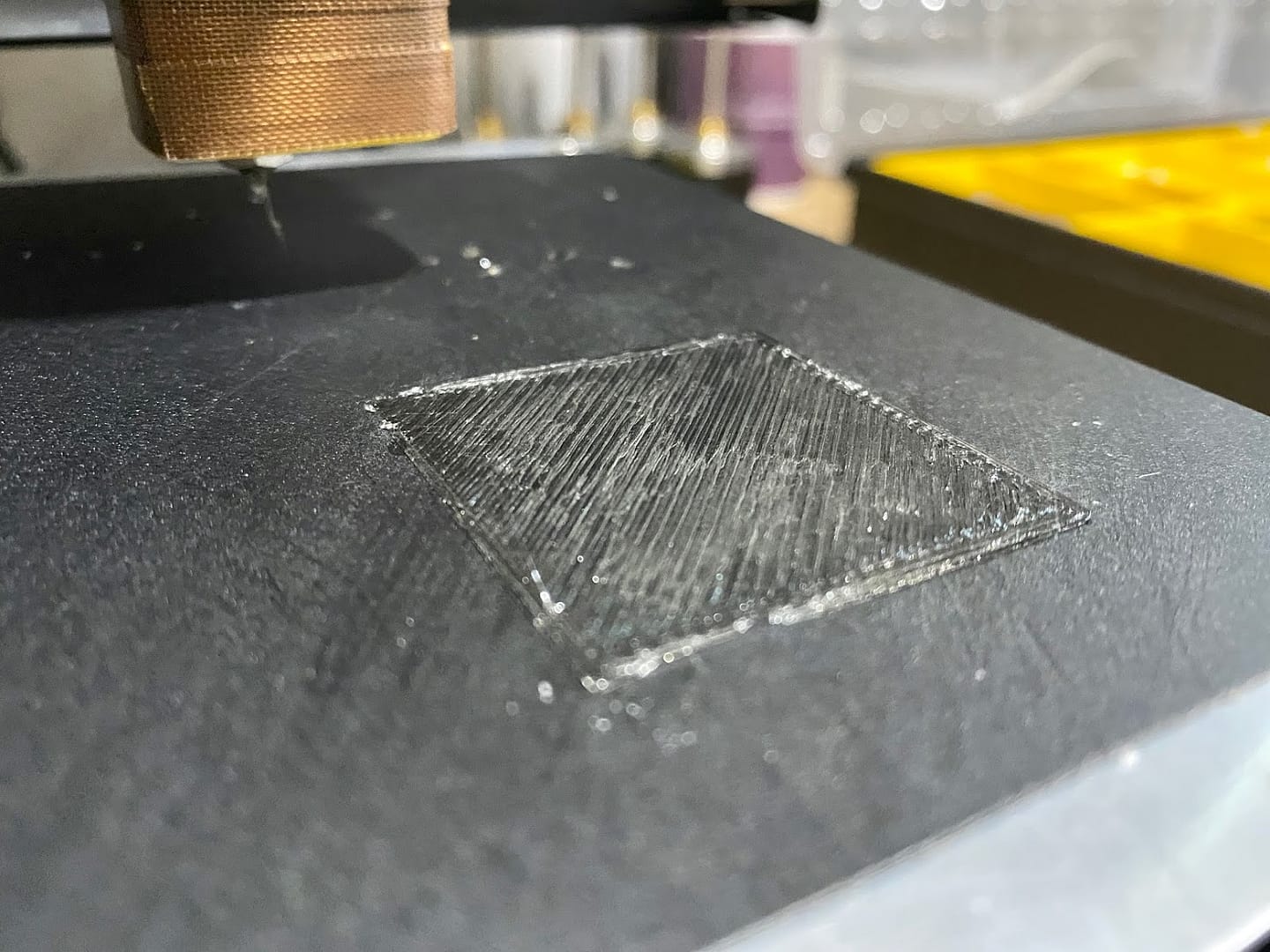

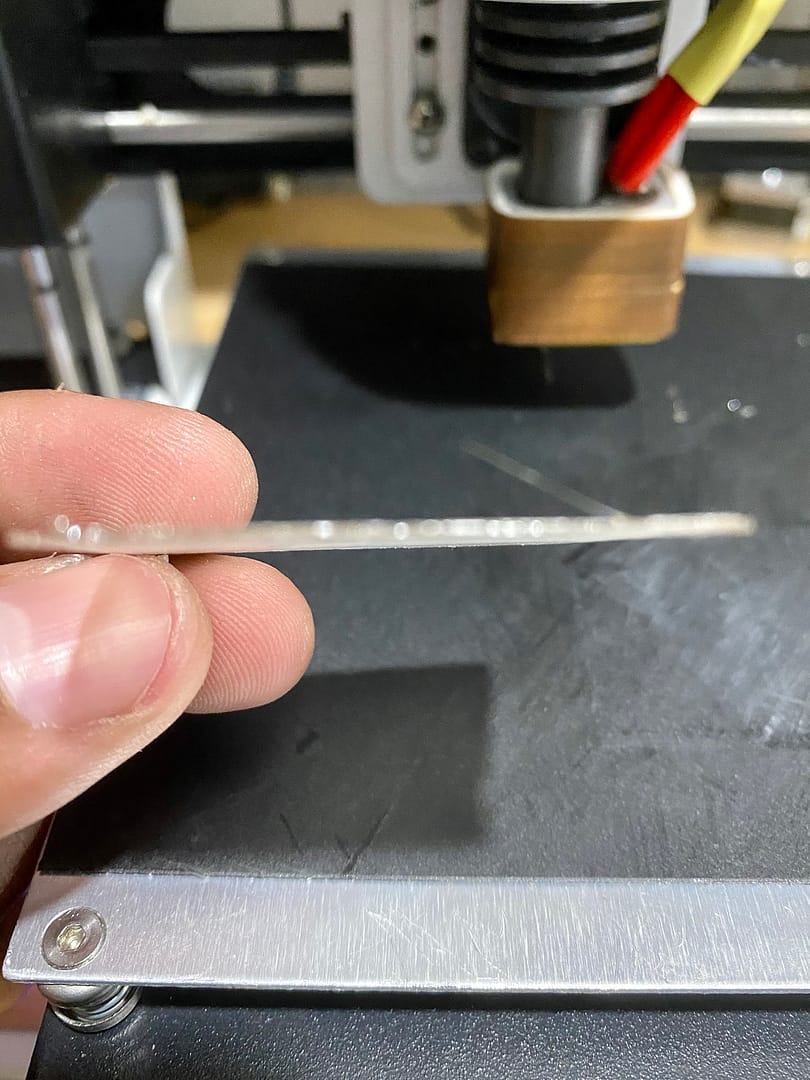

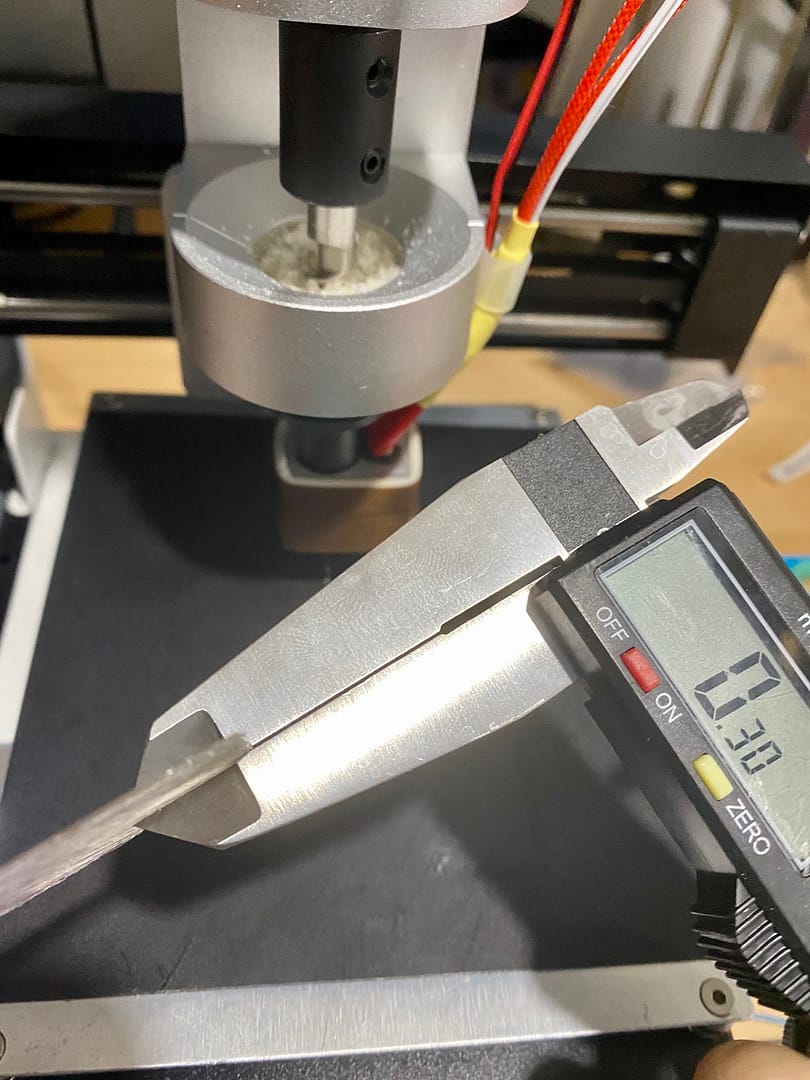

PHOTO GALLERY
VIDEOS
TECHNICAL SPECIFICATIONS
Type: Single Head 3D Bioprinter
Build Platform: Aluminum Heat Bed
No. of Print-head: 1
Nozzle: Pellet Extrusion
Max Print Speed: 20mm/sec (Higher speeds may results in loss of detail)
Print Precision: 0.05-0.2mm (viscosity of material and Nozzle tip size dependent)
Optimal Layer Height: 0.043, 0.087, 0.131, 0.175, 0.218, 0.262, 0.306
Build Size: 100*120*80mm (3.9“ x 4.7” x 3.1“)
Max Hotend Temp: 250°C
Max Bed Temp: 100°C
Precision: X / Y axis 0.02mm, Z axis 0.045mm
Materials: Hydrogels, anything that can be extruded from a syringe
Connectivity: MicroSD card, Mirco USB connector
Baud Rate USB: Any is okay. 115200 Works without issue. Higher rate should work also.
Display: IPS color LCD screen (non touch)
AC Adapter Input Power: 100 ~ 220 VAC, 50/60 Hz
Input Power: 12VDC, 7A
Maximum Power Consumption: 84W
Input File: GC, GCODE (STL & OBJ files must be converted to G-code)
Compatibility: Windows, MacOS, Linux
Dimensions: (H x W x D) 14” x 11.3 x 7.5“ (356 x 287 x 191 mm)
Max feed rates (mm/s): X150.00, Y150.00, Z1.50, E50.00
Max Acceleration (mm/s^2): X800 Y800 Z20 E10000
